cypress公司的EZ-PD? CCG3PA是高度集成的USB Type-C端口控制器，具有最新的USB Type-C和PD標準，采用Cypress公司的M0S8技術和32位Arm? Cortex?-M0處理器，集成了64KB閃存，完整的Type-C USB-PD收發(fā)器，所有的端電阻，以及用于電壓（VBUS）穩(wěn)壓的反饋控制電路和系統(tǒng)級ESD保護，支持USB PD3.0 Version 1.1標準，QC 4.0，支持蘋果充電2.4A，AFC，BC 1.2，主要用在PC電源適配器，移動充電器，汽車充電器和充電寶。本文介紹了EZ-PD? CCG3PA主要特性，邏輯框圖和框圖，應用電路，評估板CY4532 EZ-PD? CCG3PA EVK主要特性，以及主板和電源板主要特性，電路圖，材料清單和PCB設計圖。

EZ-PD? CCG3PA is Cypress’ highly integrated USB Type-C port controller that complies with the latest USB Type-C and PDstandards and is targeted for PC power adapters， mobile chargers， car chargers， and power bank applications. In such applications，CCG3PA provides additional functionalities and BOM integration advantages. CCG3PA uses Cypress’ proprietary M0S8 technologywith a 32-bit Arm? Cortex?-M0 processor， 64-KB flash， a complete Type-C USB-PD transceiver， all termination resistors required for a Type-C port， an integrated feedback control circuitry for voltage （VBUS） regulation and system-level ESD protection. It is availablein 24-pin QFN and 16-pin SOIC packages.

EZ-PD? CCG3PA主要特性：

Type-C Support and USB-PD Support

■ Supports USB PD3.0 Version 1.1 Spec including ProgrammablePower Supply Mode

■ Configurable resistors RP and RD

■ Supports one USB Type-C port and one Type-A port

2x Legacy/Proprietary Charging Blocks

■ Supports QC 4.0， Apple charging 2.4A， AFC， BC 1.2

■ Integrates all required terminations on DP/DM lines

Integrated Voltage （VBUS） Regulation and CurrentSense Amplifier

■ Analog regulation of secondary side feedback node （directfeedback or opto coupler）

■ Integrated shunt regulator function for VBUS control

■ Constant current or constant voltage mode

■ Supports low-side current sensing for constant current control

System-Level Fault Protection

■ VBUS to CC Short Protection

■ On-chip OVP， OCP， UVP， and SCP

■ Supports OTP through integrated ADC circuit

32-bit MCU Subsystem

■ Arm Cortex-M0 CPU

■ 64-KB Flash

■ 8-KB SRAM

Clocks and Oscillators

■ Integrated oscillator eliminating the need for external clock

Power

■ 3.0-V to 24.5-V operation （30-V tolerant）

System-Level ESD Protection

■ On CC， VBUS_C_MON_DISCHARGE， DP0， DM0， P2.2， andP2.3 pins

■ ± 8-kV Contact Discharge and ±15-kV Air Gap Discharge basedon IEC61000-4-2 level 4C

Packages

■ 24-pin QFN and 16-pin SOIC

■ Supports extended industrial temperature range（–40℃ to +105℃ ）

圖1.EZ-PD? CCG3PA邏輯框圖

圖2.EZ-PD? CCG3PA內部框圖

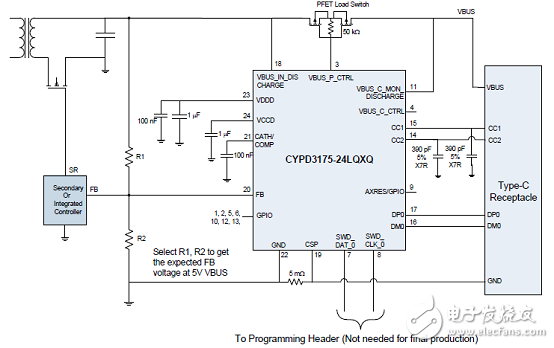

圖3. EZ-PD? CCG3PA電源適配器應用框圖：光耦合反饋控制（16引腳SOIC器件）

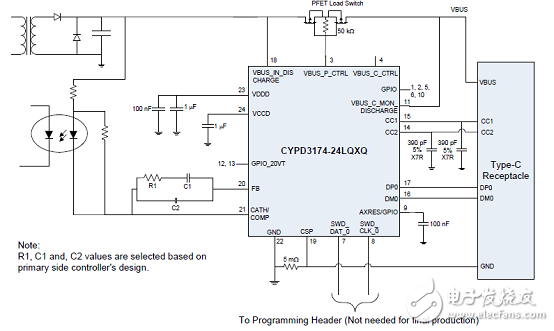

圖4. EZ-PD? CCG3PA電源適配器應用框圖：光耦合反饋控制（24引腳QFN器件）

圖5. EZ-PD? CCG3PA電源適配器應用框圖：直接反饋控制

圖6. EZ-PD? CCG3PA汽車雙端口充電器電源適配器應用框圖：直接反饋控制

圖7. EZ-PD? CCG3PA充電寶應用框圖

評估板CY4532 EZ-PD? CCG3PA EVK

The CY4532 EZ-PD? CCG3PA Evaluation Kit （EVK） is based on the CCG3PA product family of Cypress’ USB Type-C microcontrollers. This EVK is intended to be an evaluation vehicle for USB Type-C Power Adapter （PA） and USB Type-C Power Bank （PB） applications. The kit can be configured for a PA or PB application using a combination of firmware， jumper settings on the kit hardware， and external accessories. The following paragraphs provide a brief description of both applications：

USB Type-C Power Adapter （PA）： This application is used to charge a device such as a mobile phone or notebook， which supports their battery charging through the Type-C interface. The device can be connected to the Type-C port or Type-A port on the CY4532 EVK’s Main Board. This application requires a DC input to be supplied to the EVK.

USB Type-C Power Bank （PB）： This application uses a 1-Cell or 2-Cell Lithium-ion battery connected to the CY4532 EVK， which acts as the power source to support charging on USB Type-C and USB Type-A ports. In addition， the battery can be charged using a USB Type-C Power Adapter connected to the USB Type-C port of the EVK’s Main Board.

In addition to the applications described above， the CY4532 Power Board can be used as a Programmer for Cypress EZ-PD CCGx Products supporting Configuration Channel （CC） boot-loading. See Chapter 5. Kit Operation for more details.

CY4532 EZ-PD? CCG3PA Evaluation Kit

The CY4532 EZ-PD? CCG3PA Evaluation Kit （EVK） is based on the CCG3PA product family of Cypress’s USB Type-C microcontrollers. This EVK is intended to be an evaluation vehicle for USB Type-C Power Adapter （PA）， USB Type-C mobile charger and USB Type-C Power Bank （PB） applications. The kit can be configured for the PA or PB application using a combination of firmware， jumper settings on the kit hardware， and external accessories.

評估板CY4532 EZ-PD? CCG3PA EVK主要特性：

Support for USB Type-C Power Adapter， USB Type-C Mobile Charger and USB Type-C Power Bank applications

One USB Type-C Source/Sink Port and one USB Type-A Source Port

Support for Apple 2.4A， Samsung AFC， and BC1.2 charging protocols

Charging of Notebooks， Mobile Phones and USB powered devices

Support for the USB PD 3.0 standard with Programmable Power Supply （PPS） and Qualcomm Quick Charge 4.0 protocol

Support for 1-Cell and 2-Cell battery （Power Bank application）

Firmware upgradeable

評估板CY4532 EZ-PD? CCG3PA EVK包括：

CY4532 EZ-PD CCG3PA EVK Main Board （pre-mounted on the CY4532 EVK Power Board）

CY4532 EZ-PD CCG3PA EVK Power Board

12 V 50.4 W AC/DC Power Adapter

Quick Start Guide

圖8.評估板CY4532 EZ-PD? CCG3PA EVK架構圖

評估板CY4532 EZ-PD? CCG3PA EVK包括：

??A DC Input Jack

??A Battery Input Terminal

??A Micro-USB connector to download firmware to CCG3PA

??A Type-C receptacle to enable programming of an external CCG3PA based hardware

??Regulators to support battery charging and to provide power for the USB Type-C and USB Type-A charging

CY4532主板包括：

??CCG3PA silicon （CYPD3171-24LQXQ）

??A Type-C receptacle

??A USB Type-A connector

??MiniProg3 SWD header to program CCG3PA

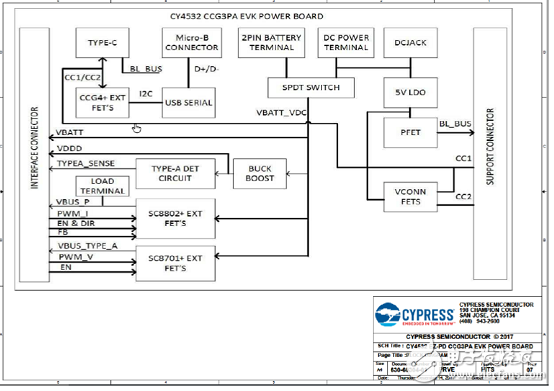

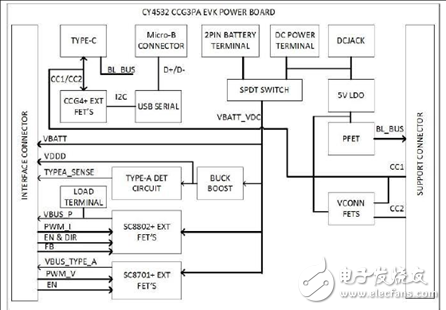

圖9.CY4532電源板框圖

圖10.CY4532電源板連接器圖

圖11.CY4532 EVK主板框圖

圖12.CY4532 EVK主板連接器/跳線設定圖

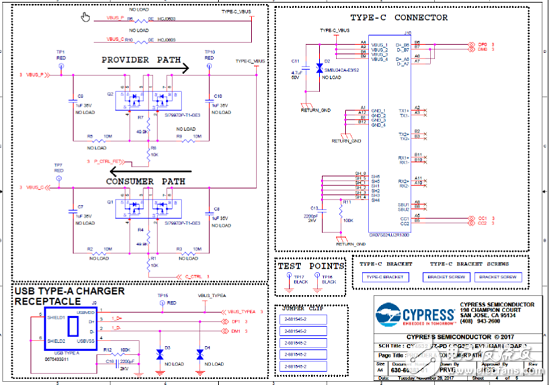

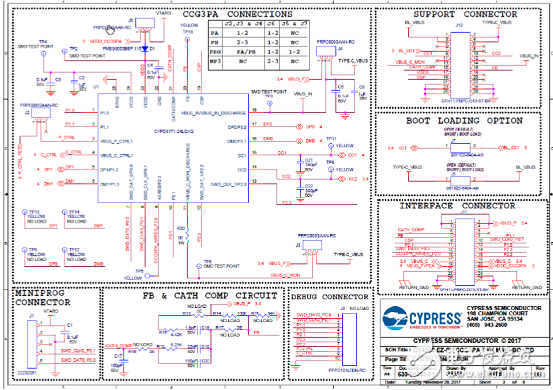

圖13.CY4532 EVK主板電路圖（1）

圖14.CY4532 EVK主板電路圖（2）

圖15.CY4532 EVK主板電路圖（3）

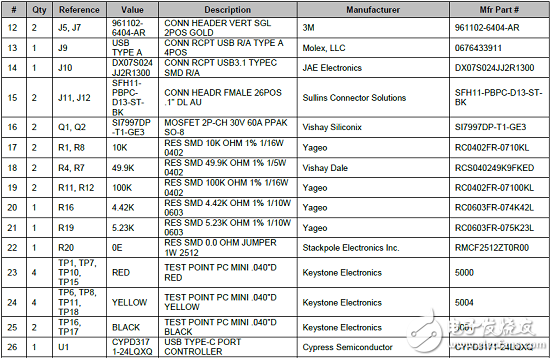

CY4532 EVK主板材料清單：

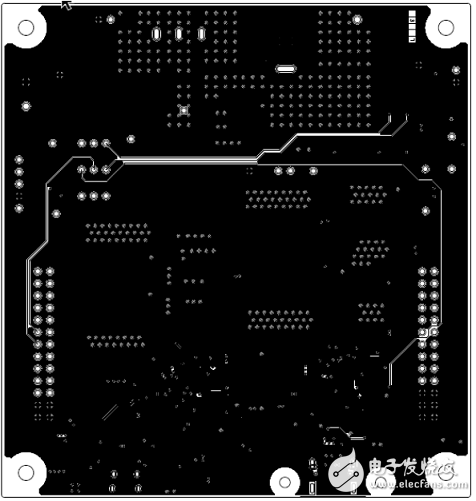

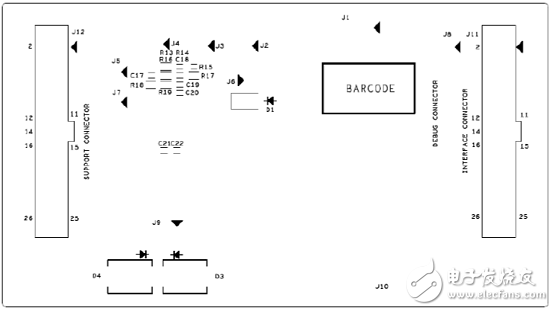

圖16.CY4532 EVK主板PCB設計圖（1）

圖17.CY4532 EVK主板PCB設計圖（2）

圖18.CY4532 EVK主板PCB設計圖（3）

圖19.CY4532 EVK主板PCB設計圖（4）

圖20.CY4532 EVK主板PCB設計圖（5）

圖21.CY4532 EVK主板PCB設計圖（6）

圖22.CY4532 EVK電源板電路圖（1）

圖23.CY4532 EVK電源板電路圖（2）

圖24.CY4532 EVK電源板電路圖（3）

圖25.CY4532 EVK電源板電路圖（4）

圖26.CY4532 EVK電源板電路圖（5）

圖27.CY4532 EVK電源板電路圖（6）

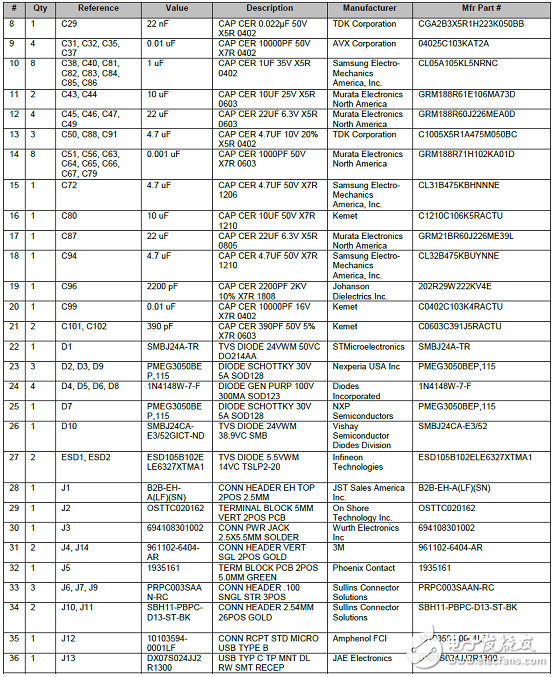

CY4532 EVK電源板材料清單：

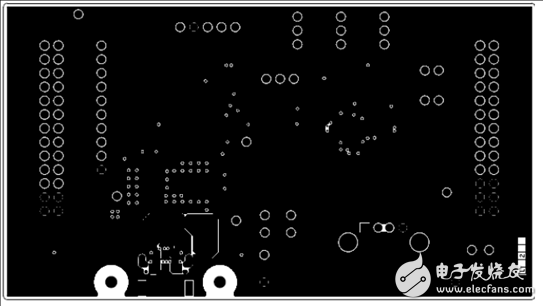

圖28.CY4532 EVK電源板PCB設計圖（1）

圖29.CY4532 EVK電源板PCB設計圖（2）

圖30.CY4532 EVK電源板PCB設計圖（3）

圖31.CY4532 EVK電源板PCB設計圖（4）

圖32.CY4532 EVK電源板PCB設計圖（5）

圖33.CY4532 EVK電源板PCB設計圖（6）
