MAX3580 DVB-T Reference Design
Abstract: The MAX3580 DVB-T reference design meets NorDig and MBRAI requirements. This NIM design includes the MAX3580 direct-conversion tuner and a COFDM DVB-T demodulator. A discrete, active loop-through with low power consumption and low cost is included.
Figure 1. The reference design for the NorDig and MBRAI DVB-T tuner features the MAX3580.

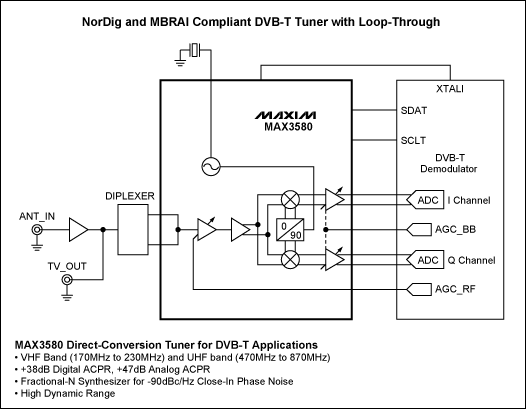

Figure 2. System block diagram.
| Lab Measurements |

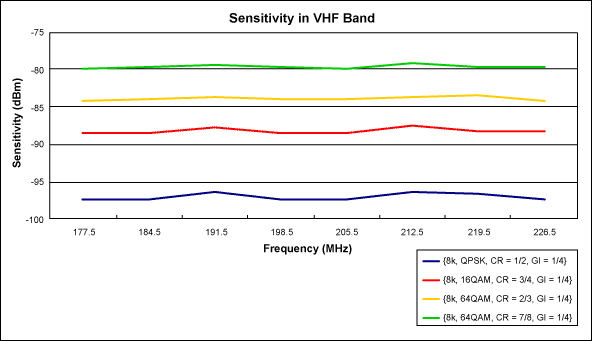

Figure 3. Data shows that there is at least 2dB margin to NorDig 1.0.2 in the VHF band.
Figure 4. Here the data shows that there is 3.5dB to about 5dB margin to NorDig 1.0.2 in the UHF band.
| NorDig Compliance |
| Parameter | Conditions | Measured | NorDig | Units |
| Operating Frequency Range | VHF-III Band: 170MHz to 230MHz | – | ||
| UHF Band: 470MHz to 870MHz | – | |||
| Sensitivity, Gaussian Channel (VHF-III Band) |
QPSK, 8k, CR = 1/2, GI = 1/4 | -97.3 | -94.6 | dBm |
| 16QAM, 8k, CR = 3/4, GI = 1/4 | -88.5 | -85.1 | ||
| 64QAM, 8k, CR = 7/8, GI = 1/4 | -79.6 | -77.2 | ||
| Sensitivity, Gaussian Channel (UHF Band) |
QPSK, 8k, CR = 1/2, GI = 1/4 | -96.6 | -92.1 | dBm |
| 16QAM, 8k, CR = 3/4, GI = 1/4 | -87.9 | -82.6 | ||
| 64QAM, 8k, CR = 7/8, GI = 1/4 | -79.6 | -74.7 | ||
| Maximum Input, Gaussian Channel (VHF-III Band) |
64-QAM, 8k, CR = 2/3, GI = 1/8 | > 0 | -35 | dBm |
| 64-QAM, 8k, CR = 2/3, GI = 1/4 | > 0 | -35 | ||
| 64-QAM, 8k, CR = 3/4, GI = 1/8 | > 0 | -35 | ||
| Maximum Input, Gaussian Channel (UHF Band) |
64-QAM, 8k, CR = 2/3, GI = 1/8 | > 0 | -35 | dBm |
| 64-QAM, 8k, CR = 2/3, GI = 1/4 | > 0 | -35 | ||
| 64-QAM, 8k, CR = 3/4, GI = 1/8 | > 0 | -35 | ||
| Adjacent Channel Selectivity | N+1 DVB-T adjacent channel | 47 | ≥ 28 | dBc |
| N-1 DVB-T adjacent channel | 45 | |||
| N+2 DVB-T adjacent channel | 47.8 | ≥ 38 | ||
| N-2 DVB-T adjacent channel | 46 |
| MBRAI Compliance |
| Case | Category | Measure | MBRAI | Units | |
| Selectivity, S1 Pattern | N+1 | Category a, b1 | 48 | 37 | dBc |
| N+1 | Category b2, c | 45 | 37 | dBc | |
| N-1 | Category a, b1 | 54 | 37 | dBc | |
| N-1 | Category b2, c | 51 | 37 | dBc | |
| N+2 | Category a, b1 | 47 | 37 | dBc | |
| N+2 | Category b2, c | 55 | 37 | dBc | |
| N-2 | Category a, b1 | 45 | 37 | dBc | |
| N-2 | Category b2, c | 58 | 37 | dBc | |
| Selectivity, S2 Pattern | N+1 | Category a, b1 and b2, c | 39 | 29 | dBc |
| N-1 | Category a, b1 and b2, c | 38 | 29 | dBc | |
| N+2 | Category a, b1 | 43 | 40 | dBc | |
| N+2 | Category b2, c | 45 | 40 | dBc | |
| N-2 | Category a, b1 | 42 | 40 | dBc | |
| N-2 | Category b2, c | 44 | 40 | dBc | |
| Linearity L1 | – | Category a, b1 | 45.5 | 45 | dBc |
| – | Category b2, c | 47 | 45 | dBc | |
| Linearity L2 | – | Category a, b1 | 45.2 | 45 | dBc |
| – | Category b2, c | 47 | 45 | dBc | |
| Linearity L3 | – | Category a, b1 | 40.7 | 40 | dBc |
| – | Category b2, c | 42 | 40 | dBc |
| Sensitivity Details for all Modes |
Seven Channels are selected to test the sensitivity for all DVB-T modes.
| VHF | UHF | |||||||
| Frequency (MHz) | 177.5 | 226.5 | 474 | 570 | 674 | 770 | 858 | |
| QPSK, 8k, CR = 1/2, GI = 1/4 | Sensitivity (dBm) | -97.3 | -97.3 | -97.2 | -97.1 | -96.7 | -96.5 | -96.2 |
| Max-Input (dBm) | > 0 | > 0 | > 0 | > 0 | > 0 | > 0 | > 0 | |
| QPSK, 8k, CR = 2/3, GI = 1/4 | Sensitivity (dBm) | -95.9 | -95.7 | -95.7 | -95.6 | -95.3 | -94.9 | -94.8 |
| QPSK, 8k, CR = 3/4, GI = 1/4 | Sensitivity (dBm) | -94.8 | -94.8 | -94.7 | -94.6 | -94.5 | -94.1 | -94 |
| QPSK, 8k, CR = 5/6, GI = 1/4 | Sensitivity (dBm) | -93.8 | -93.7 | -93.6 | -93.6 | -93.3 | -93 | -92.8 |
| QPSK, 8k, CR = 7/8, GI = 1/4 | Sensitivity (dBm) | -93.3 | -93.1 | -93.1 | -92.7 | -92.7 | -92.4 | -92.2 |
| 16QAM, 8k, CR = 1/2, GI = 1/4 | Sensitivity (dBm) | -91.7 | -91.7 | -91.5 | -91.5 | -91.4 | -90.9 | -90.7 |
| 16QAM, 8k, CR = 2/3, GI = 1/4 | Sensitivity (dBm) | -89.8 | -89.7 | -89.5 | -89.5 | -89.3 | -88.9 | -88.8 |
| 16QAM, 8k, CR = 3/4, GI = 1/4 | Sensitivity (dBm) | -88.6 | -88.3 | -88.4 | -88.1 | -88.1 | -87.5 | -87.3 |
| 16QAM, 8k, CR = 5/6, GI = 1/4 | Sensitivity (dBm) | -87.1 | -87 | -87 | -86.9 | -86.9 | -86.4 | -86.3 |
| 16QAM, 8k, CR = 7/8, GI = 1/4 | Sensitivity (dBm) | -86.4 | -85.7 | -86.1 | -85.9 | -85.7 | -85.4 | -85.6 |
| 64QAM, 8k, CR = 1/2, GI = 1/4 | Sensitivity (dBm) | -87 | -86.9 | -86.9 | -86.6 | -86.7 | -86.2 | -85.9 |
| 64QAM, 8k, CR = 2/3, GI = 1/4 | Sensitivity (dBm) | -84.1 | -84.1 | -83.8 | -83.8 | -83.7 | -83.3 | -83.2 |
| 64QAM, 8k, CR = 3/4, GI = 1/4 | Sensitivity (dBm) | -82.5 | -82.2 | -82.3 | -82.4 | -81.8 | -81.5 | -81.4 |
| 64QAM, 8k, CR = 5/6, GI = 1/4 | Sensitivity (dBm) | -80.9 | -80.9 | -80.7 | -80.7 | -80.4 | -80.2 | -79.8 |
| 64QAM, 8k, CR = 7/8, GI = 1/4 | Sensitivity (dBm) | -79.9 | -79.7 | -79.5 | -79.5 | -79 | -78.9 | -78.8 |
| Max-Input (dBm) | -2 | -0.2 | > 0 | > 0 | > 0 | > 0 | > 0 | |
| Supply Current |
Test conditions for supply current measurements include 75Ω terminations on RF input and TV output, active working mode, and system tuned to channel 69 (858MHz).
| Parameter | Conditions | Measured | Units |
| 5V LNA Supply Current | 12 | mA | |
| 5V for Tuner and LNA* | {8k, QPSK, CR = 1/2, GI = 1/4} | 196 | mA |
| {8k, 64QAM, CR = 7/8, GI = 1/4} | 196 | mA | |
| 3.3V Digital Supply Current for Demodulator | {8k, QPSK, CR = 1/2, GI = 1/4} | 8 | mA |
| {8k, 64QAM, CR = 7/8, GI = 1/4} | 10 | mA | |
| 2.5V Analog Supply Current for Demodulator | {8k, QPSK, CR = 1/2, GI = 1/4} | 36 | mA |
| {8k, 64QAM, CR = 7/8, GI = 1/4} | 36 | mA | |
| 1.0V Digital Supply Current for Demodulator | {8k, QPSK, CR = 1/2, GI = 1/4} | 90 | mA |
| {8k, 64QAM, CR = 7/8, GI = 1/4} | 92 | mA | |
| 1.0V Analog Supply Current for Demodulator | {8k, QPSK, CR = 1/2, GI = 1/4} | 3 | mA |
| {8k, 64QAM, CR = 7/8, GI = 1/4} | 3 | mA |
| Detailed Description |
This DVB-T receiver reference design is NorDig 1.0.2 and MBRAI compliant. It is intended for terrestrial set-top box applications and has a NIM form factor. The reference design covers the VHF-III band (170MHz to 230MHz) and UHF band (470MHz to 870MHz) and interfaces with a socket board for testing system performance.
The reference design includes:
- A discrete LNA to realize an active loop-through. The loop-through has 14dB gain and less than 3.5dB noise figure, with 60mW of power consumption.
- A MAX3580 fully integrated silicon tuner, which includes an LNA, RF and IF VGAs, mixer and lowpass filtering in the baseband stages. The tuner operates from a single 3.3V power supply. Only a small number of passive components are needed to form a complete DVB-T RF front-end solution.
- A DVB-T/H-compliant demodulator that features the full DVB-T and DVB-H standards framing structure, channel coding, and demodulation.
