25針并口定義

Pin Name Dir Description
  1 /STROBE -> Strobe
  2 D0 -> Data   Bit   0
  3 D1 -> Data   Bit   1
  4 D2 -> Data   Bit   2
  5 D3 -> Data   Bit   3
  6 D4 -> Data   Bit   4
  7 D5 -> Data   Bit   5
  8 D6 -> Data   Bit   6
  9 D7 -> Data   Bit   7
  10 /ACK <- Acknowledge
  11 BUSY <- Busy
  12 PE <- Paper   End
  13 SEL <- Select
  14 /AUTOFD -> Autofeed
  15 /ERROR <- Error
  16 /INIT -> Initialize
  17 /SELIN -> Select   In
  18 GND -- Signal   Ground
  19 GND -- Signal   Ground
  20 GND -- Signal   Ground
  21 GND -- Signal   Ground
  22 GND -- Signal   Ground
  23 GND -- Signal   Ground
  24 GND -- Signal   Ground
  25 GND -- Signal   Ground

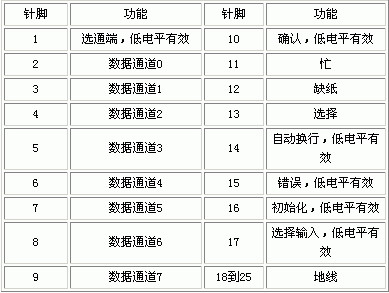

 25針并口線定義
